CASTER
Professional Auracast™ Transmitter
B-PASS

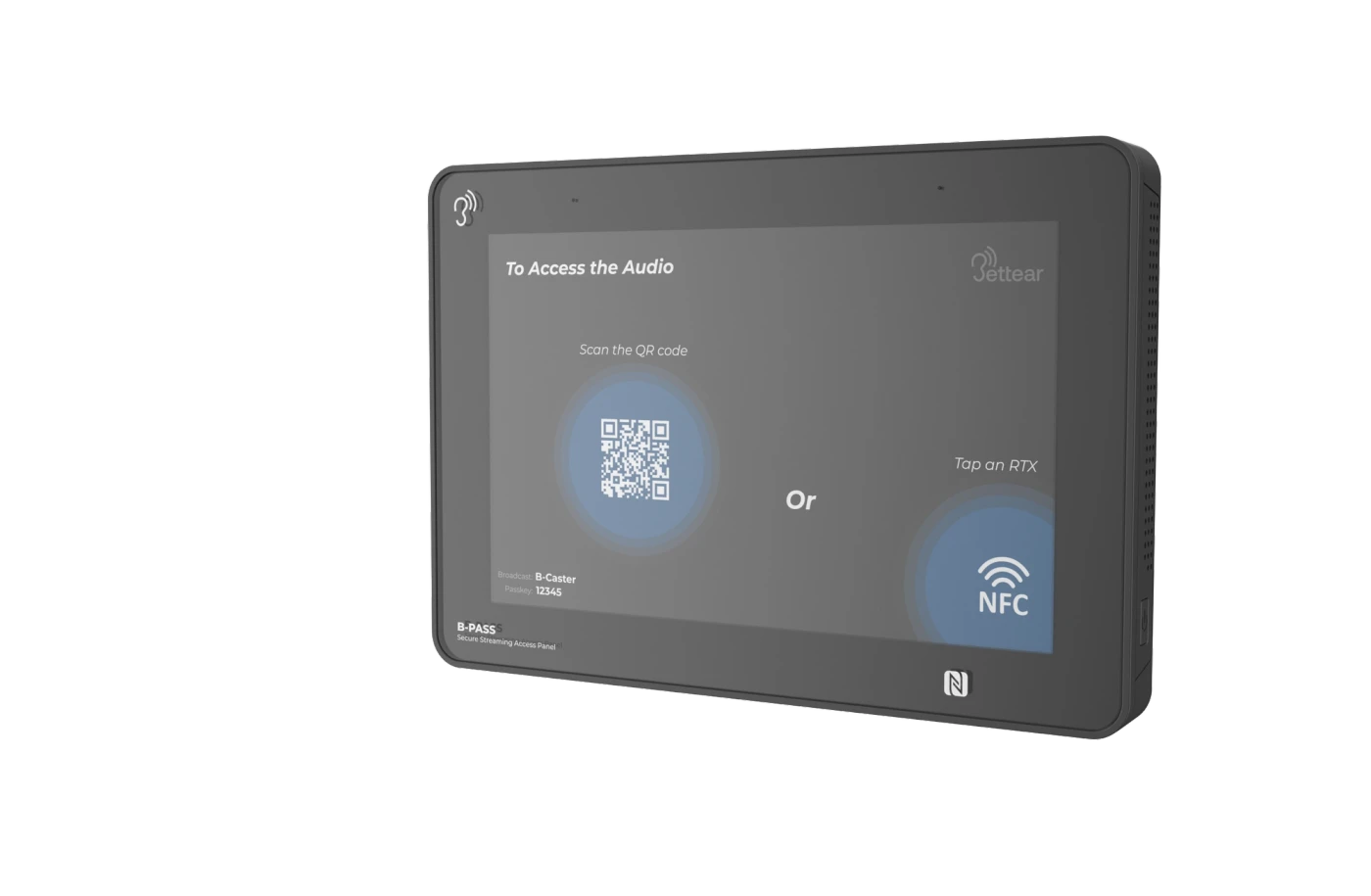

B-PASS is a smart access panel designed for seamless, fast, and secure access to Auracast™ streams.
Even in dense environments, users can connect effortlessly using Tap-to-Access (NFC) or Scan-to-Access (QR code).
In sensitive environments, B-PASS ensures that only authorized listeners can access the audio.
- Secure access and control panel for Auracast™ streams
- Seamless access via NFC and QR code
- Passkey generation via calendar, NFC admin tag or API
- Calendar-synced passkeys: a new passkey for every meeting
- Adjustable security levels
- Single-cable installation over Ethernet
- Customizable branding and signage
- Desktop and wall-mounted installations
- Fully compatible with CASTER and RTX devices
Courtrooms Classrooms Cinemas Theaters
SKU: BTR-PASS

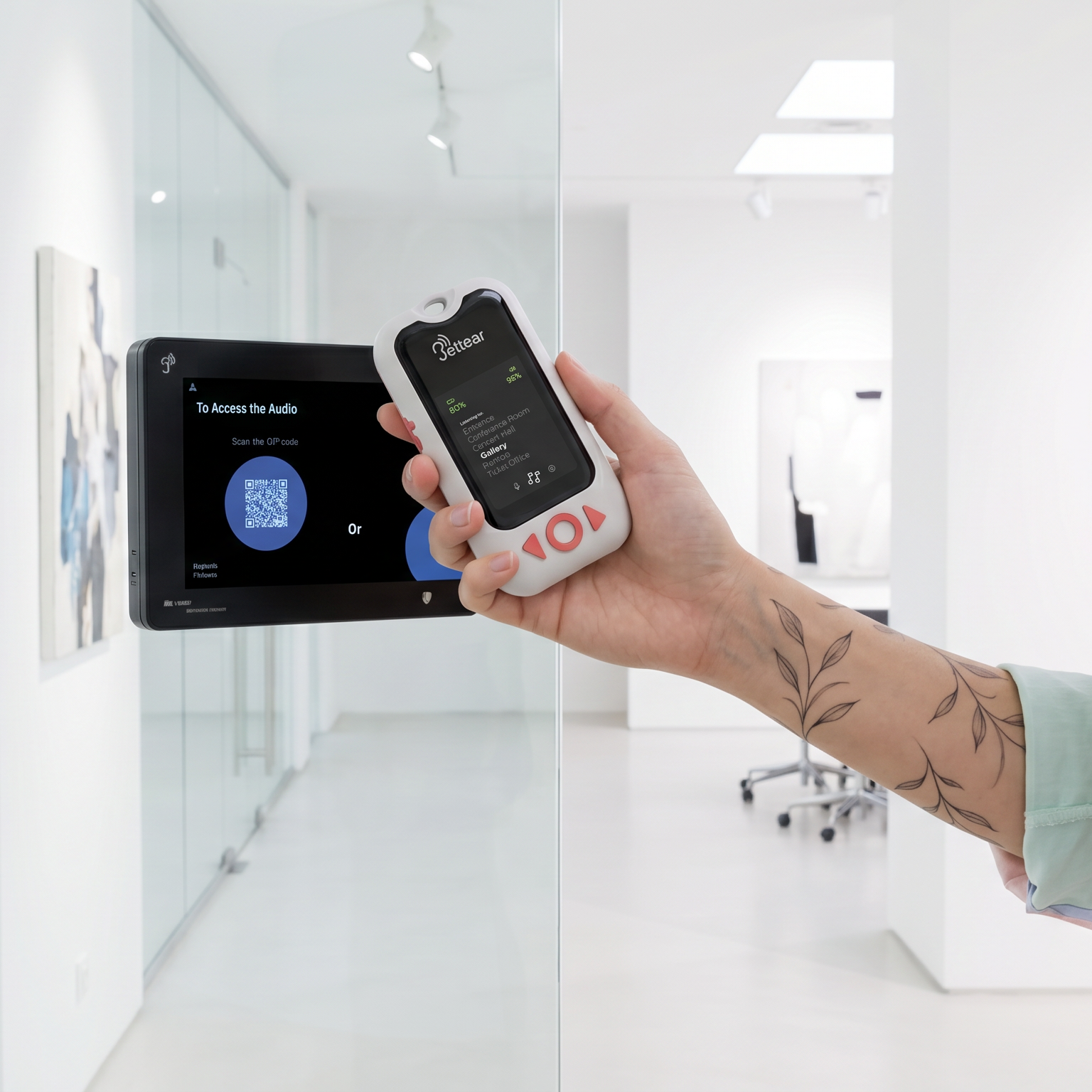

1. Quick Stream Access
Users connect instantly via NFC tap or QR scan.

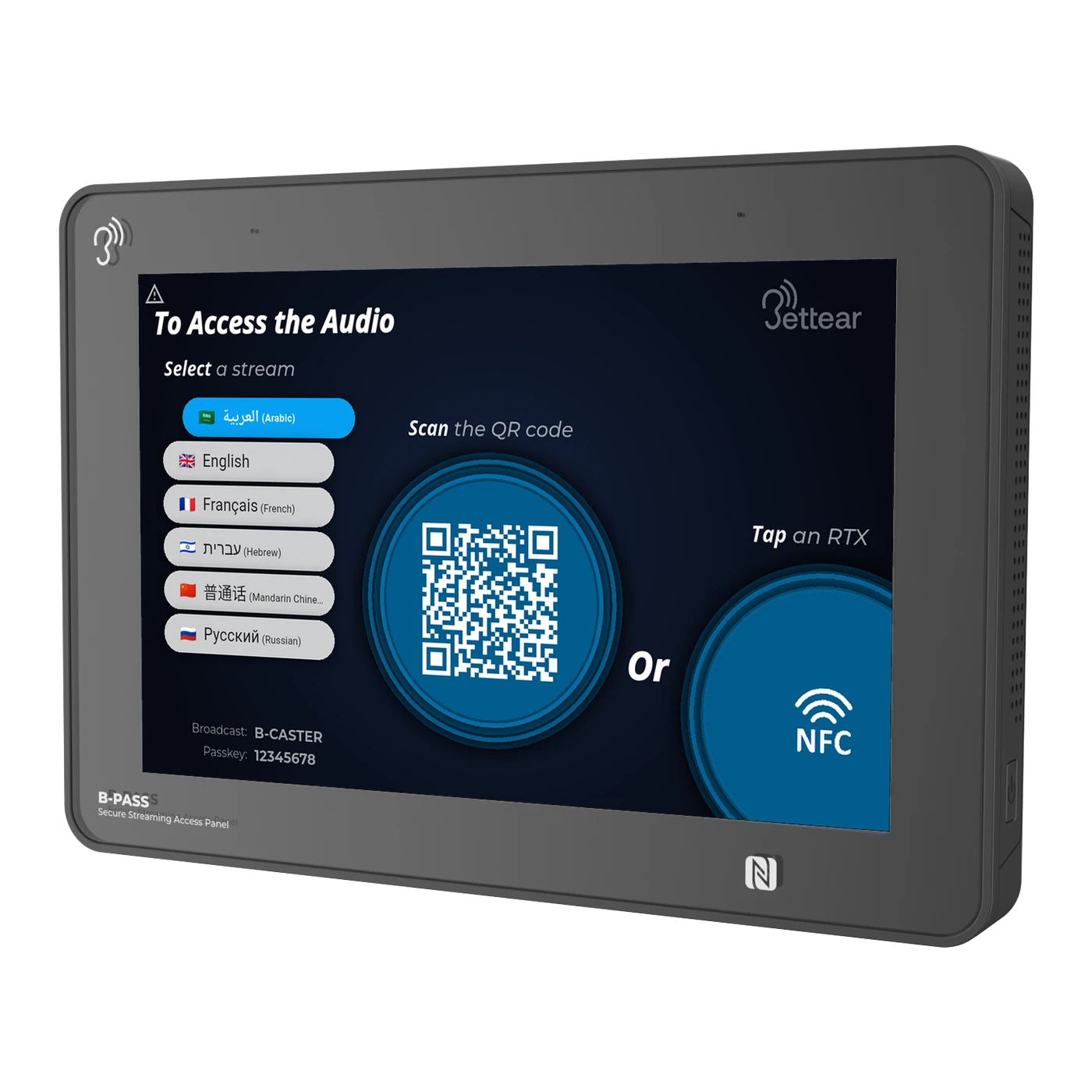

2. Multi-Language Stream Selection
Listeners pick their language right on the screen, then scan the QR code or tap their RTX to join the matching stream instantly. No searching, no setup.
3. Accessibility Signage
Custom graphics turn B-PASS into clear, intuitive accessibility signage.
4. Security Control
Configure passkey complexity and access methods to match deployment needs.
5. Dynamic Passkey Generation
Generate a new passkey instantly by tapping an admin NFC tag. All previously connected listeners are disconnected, and only users who access the B-PASS on-site can reconnect to the audio.

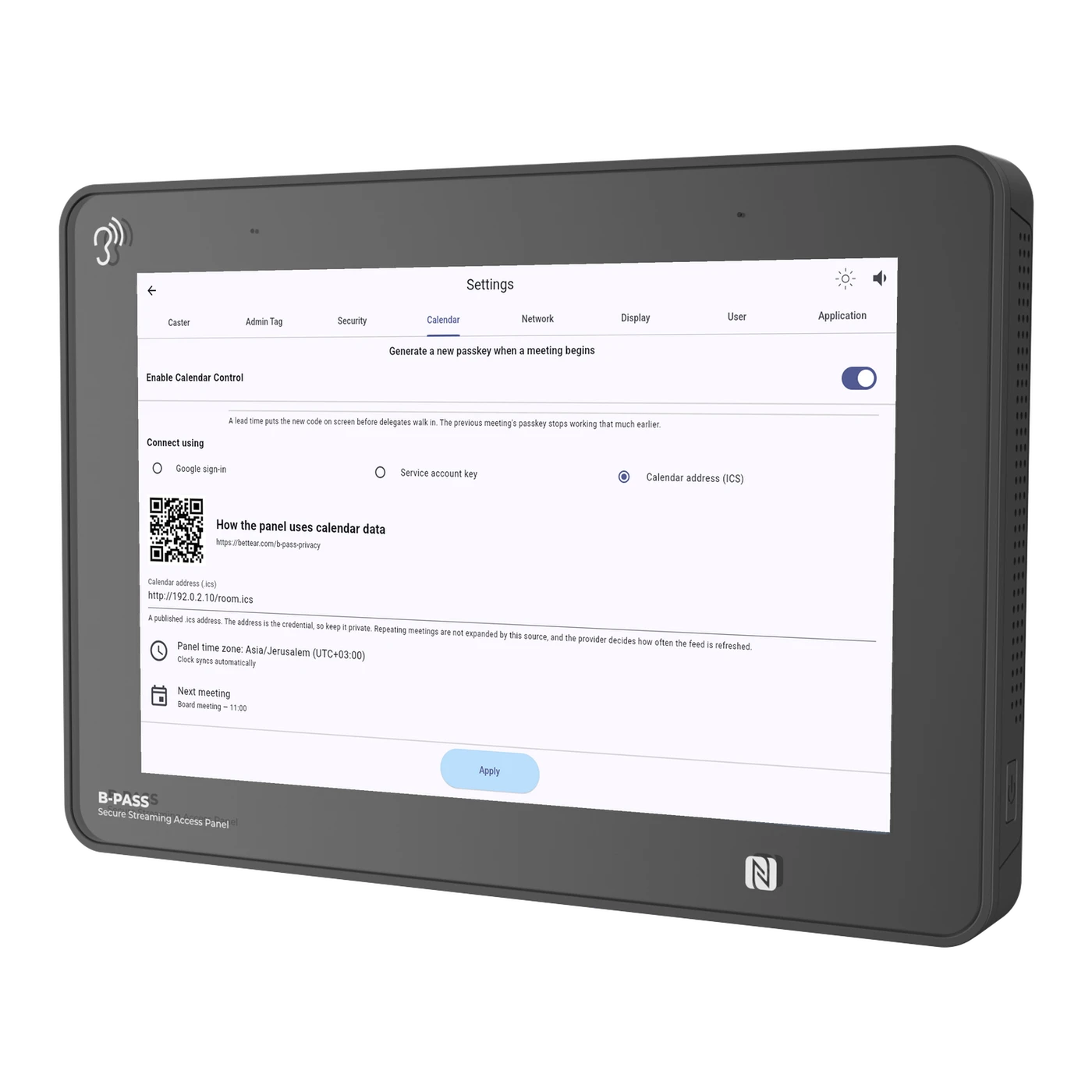

6. Calendar-Synced Passkeys
Connect B-PASS to the room's calendar (Google Workspace, Microsoft 365 or any .ics calendar) and a new passkey is generated automatically as each meeting begins. Only the audience of the meeting in progress can listen. No gateway, server or extra software is needed.
Product details
System
- CPU
- RK3568 Cortex-A55 Quad-Core
- RAM
- 2GB
- Internal Memory
- 16GB
- OS
- Android 11
Display
- Screen
- 8" LCD IPS panel
- Resolution
- 1280×800
- Viewing angle
- 85/85/85/85 (L/R/U/D)
- Contrast
- 800
- Brightness
- 300 cd/m2
- Screen scale / area
- 16:10 / Display area: 172.224(H)x107.64mm(V)

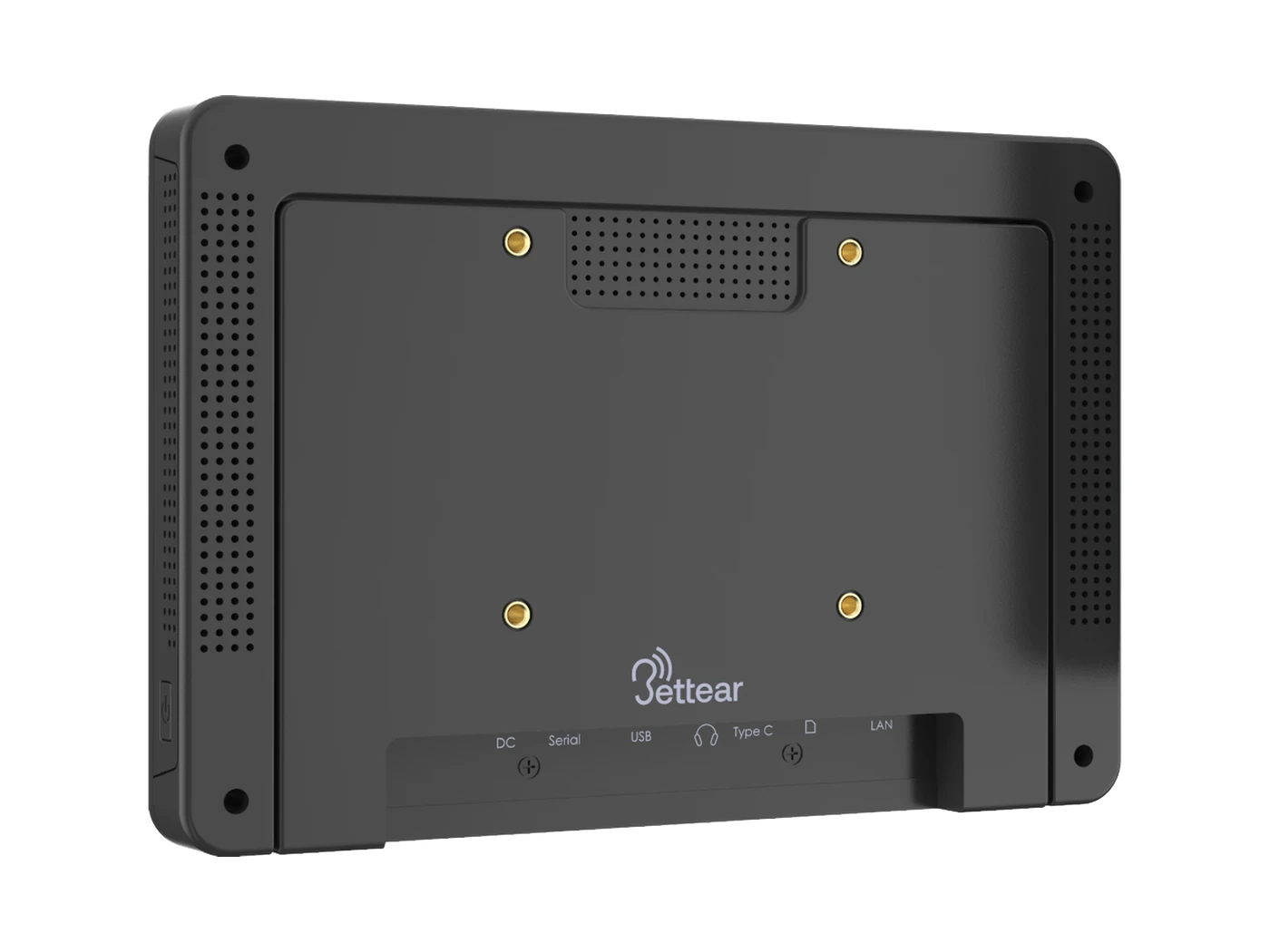

Interfaces
- Ethernet (RJ45)
- 10/100/1000 Mbps Ethernet with PoE
- Bluetooth
- Bluetooth 5.2
- NFC
- Yes
- TF card slot
- Supports up to 64 GB
- USB Ports
- 2 × USB-A, 1 × USB-C
- Headset jack
- 3.5mm earphone + microphone
- Power
- DC power jack
Power
- DC In
- 12V DC / 1.5A, center-positive
- PoE
- IEEE 802.3at, PoE class 4, 25.5W
Mounting
- Wall-mounting
- VESA 75 x 75 mm
Physical
- Weight
- 647g (1.42 lbs)
- Shipping Weight
- 1,110g (2.44 lbs)
- Color
- Black
